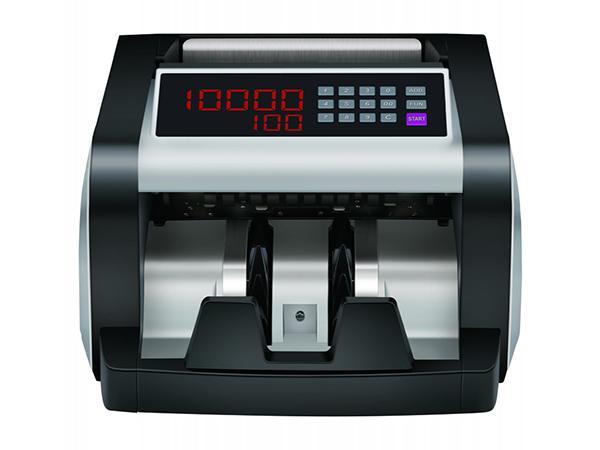

HL-3600 Currency Counter

The HL-3600 currency counter is a money counting machine suitable for banks, stock exchange bureaus and finance department of corporations. The counter works at the speed of over 1200 pcs/min, with authentication performed on the notes simultaneously.
We provide two variations of the product: with or without authentication functionality.

Counting Speed: over 1200 pcs/min
Duration: suspend for a while after continuous work of an hour (standby time excluded)
Counterfeit Detection: UV detection/ MG detection
Currency Supported : USD, EUR, GBP, TWD, NOK, NPR, GHS, AUD, AED, ZAR
Hopper Size: 50mm*100mm - 100mm*185mm
Batch Preset Number Display: 3 digits RED LED (small)
Side Screen Counting Number Display: 5 digits RED LCD (large)
Side Screen Preset Number Display: 3 digits RED LCD (small)
N.W.: 6.5 KG
Dimensions: 300mm*280mm*195mm
Power Supply: AC 230V 50HZ/AC 120V 60HZ
Power Consumption: ≤ 75W
Hopper Capacity: 250 old bills or 300 new bills
Stacker Capacity: 200 old bills or 250 new bills
MOQ: 100

Comparison: standard versus detection-enabled
Functionality Standard With UV-detection With MG-detection
UV detection ×
MG detection × ×
Multinational currencies detection
Batch, Addition ,self-checking
Half-note detection
Double-note detection
Automatic reset

Working condition
Ambient temperature: 32℉-104℉ (0℃-40℃)
Ambient Humidity: 25%-80%
Feeding System: Roller Friction System

1. The HL-3600 currency counter allows automatic startup, shutdown and reset.
2. The counting machine automatically counts bills and resets the counter, with no human support needed. 3. Derived from such automation is high usability.
4. Batch mode is supported, with an upper bound of counting 9999 notes.
5. We equip two displays (including a large LCD display on the front and an LCD display on the side) with the counter, so that customer may operate the device from various directions.
6. The currency counter will shut down automatically when a half-note or double-note is detected.
7. Upon an error during execution, the counter will terminate, with the error code displayed on the screen.
8. The counting machine will suspend when a preset counting limit is reached. After the notes are fetched from the stacker, it will continue working.
9. We use static proof material to manufacture essential components of the currency counter, achieving a static free working environment.
10. A burn-in test is applied to every components to ensure the quality of the device.
